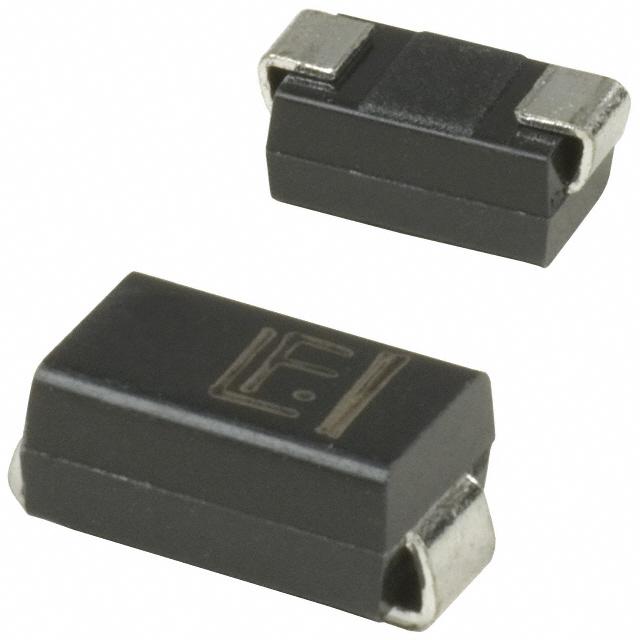

Image is for your reference only,please check specifications for details

SMAJ40A - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC951744
Category:
TVS Diode
Package:
DO-214AC-2
Datasheet:
Datasheet 3D Model
Description:
Trans Voltage Suppressor Diode, 400W, 40V V(RWM), Unidirectional, 1Element, Silicon, DO-214AC, HALOGEN FREE AND ROHS COMPLIANT, PLASTIC, SMA, 2Pin
Stock Locations:
Availability:
9,206 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

SMAJ40A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-214AC-2
Voltage Rating (DC)	40.0 V
Operating Voltage	40 V
Power Rating	400 W
Breakdown Voltage	46.75 V
Number of Circuits	1 Circuit
Number of Positions	2 Position
Forward Voltage	5 V
Power Dissipation	3.3 W
Clamping Voltage	64.5 V
Test Current	1 mA
Max Breakdown Voltage	49.1 V
Peak Pulse Power	400 W
Min Breakdown Voltage	44.4 V
Reverse Breakdown Voltage	44.4 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 150℃
	Show
Size-Length	5.28 mm
Size-Width	2.79 mm
Size-Height	2.29 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
