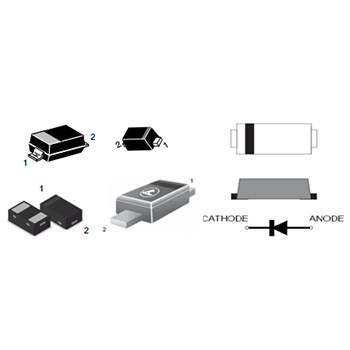

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Schottky Barrier Rectifiers
Reverse Voltage 20 to100V Forward Current 3.0A
FEATURES
* Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
* Low power loss,high efficiency
* For use in low voltage high frequency inverters, free wheeling,and polarity protection applications
* Guardring for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals

Show

SM340A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	SMA
Forward Voltage	0.5 V
Max Repetitive Reverse Voltage (Vrrm)	40V
Forward Current	3 A
Max Reverse Leakage Current (Ir)	500uA
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Minimum Packing Quantity	2000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
