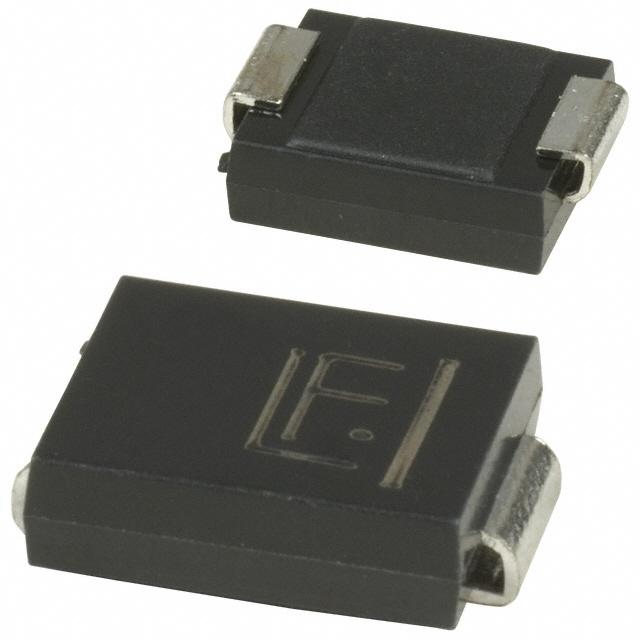

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SMCJ series surface-mount Transient Voltage Suppression Diode designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits. It is used for surface mounted applications in order to optimize board space.
1500W Peak pulse power capability at 10/1000µs waveform
Built-in strain relief
Glass passivated junction
Low inductance
Excellent clamping capability
0.05% Repetition rate (duty cycle)
<1ps from 0V to V(BR) Minimum fast response time
<1µA above 10V Current IR
Available in unidirectional and bidirectional
ESD protection of data lines in accordance with IEC 61000-4-2 (IEC801-2)
EFT protection of data lines in accordance with IEC 61000-4-4 (IEC801-4)
-65 to 150°C Operating temperature range

Show

SMCJ78A Specifications
