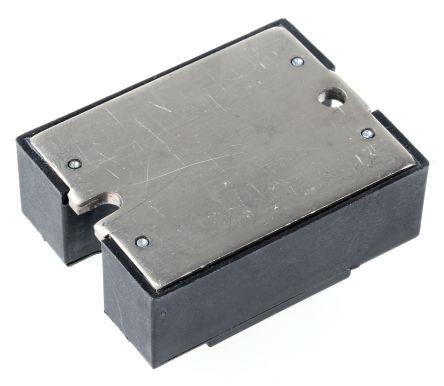

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

D06D80 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	Hockey Puck
Operating Voltage	60.0V (max)
Current Rating	80 A
Insulation Resistance	1.00 GΩ
Output Voltage	0V ~ 60V
Output Current	80000 mA
Contacts Type	SPST-NO
Load Current	80 A
Input Current	28 mA
Power Dissipation	0.5 W
Isolation Voltage	2500 v
Input Voltage (Max)	32 V
Input Voltage (Min)	3.5 V
Output Voltage (Max)	60 V
Output Current (Max)	80 A
Input Current (Min)	28 mA
Load Current (Max)	80 A
Load Current (Min)	5 mA
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-30 ℃
Voltage Rating	60 VDC
Operating Voltage (Min)	0 VDC
Operating Voltage (Max)	60 VDC
Input Voltage	32 V
	Show
Size-Length	58.4 mm
Size-Width	45.7 mm
Size-Height	22.9 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536410060
ECCN Code	EAR99
