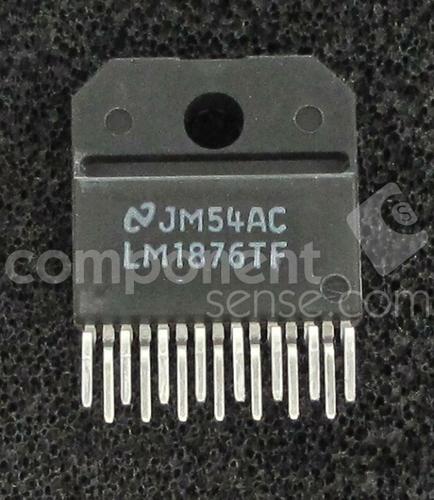

Image is for your reference only,please check specifications for details
Updated at 23/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LM1876TF is a dual overture stereo Audio Power Amplifier with mute and standby mode. This amplifier is capable of delivering typically 20W per channel of continuous average output power into a 4 or 8R load with less than 0.1% THD+N. Has an independent smooth transition fade-in/out mute and a power conserving standby mode which can be controlled by external logic. The performance of the LM1876, utilizing its Self Peak Instantaneous Temperature (°Ke) (SPiKe) protection circuitry, places it in a class above discrete and hybrid amplifier by providing an inherently, dynamically protected Safe Operating Area (SOA). SPiKe protection means that these parts are safeguarded at the output against overvoltage, under-voltage, overloads, including thermal runaway and instantaneous temperature peaks.
- SPiKe protection
- Minimal amount of external components necessary
- Quiet fade-in/out mute mode
- Standby-mode
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
LM1876TF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 15 Pin |
| Case/Package | TO-220-15 |
| Supply Voltage (DC) | 22.0 V |
| Number of Channels | 2 Channel |
| Number of Positions | 15 Position |
| Power Dissipation | 62.5 W |
| Bandwidth | 7.50 MHz |
| Gain Bandwidth Product | 7.5 MHz |
| Output Power | 20 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Power Dissipation (Max) | 62500 mW |
| Minimum CMRR Range | 80 dB |
| Supply Voltage | 20V ~ 64V |
| Show | |
| Size-Length | 20.14 mm |
| Size-Width | 4.62 mm |
| Size-Height | 10.77 mm |
| Operating Temperature | -20℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
