Description

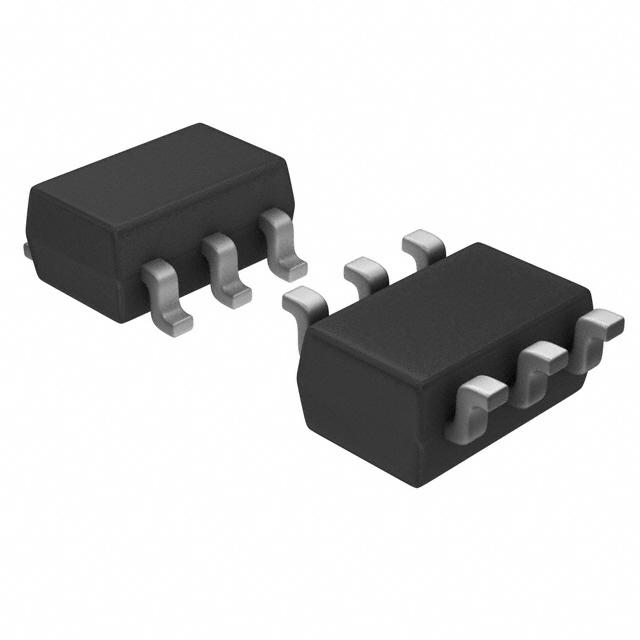

The SN65220DBVR is a 6-pin USB port Transient Voltage Suppressor (TVS). This device provides electrical noise transient protection to universal serial bus (USB) low and full-speed ports. The input capacitance of 35pF makes it unsuitable for high-speed USB 2.0 applications. Any cabled I/O can be subjected to electrical noise transients from various sources. This noise transients can cause damage to the USB transceiver or the USB ASIC if they are of sufficient magnitude and duration.
1µA at 6V Maximum low current leakage
35pF (typical) Low capacitance
3A Peak forward surge current
ESD sensitive device, take proper precaution while handling the device.

Show

SN65220DBVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Operating Voltage	6 V
Capacitance	35 pF
Power Rating	60 W
Breakdown Voltage	7 V
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Positions	6 Position
Power Dissipation	385 mW
Clamping Voltage	7 V
Max Breakdown Voltage	8 V
Peak Pulse Power	60 W
Min Breakdown Voltage	6.5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	385 mW
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
