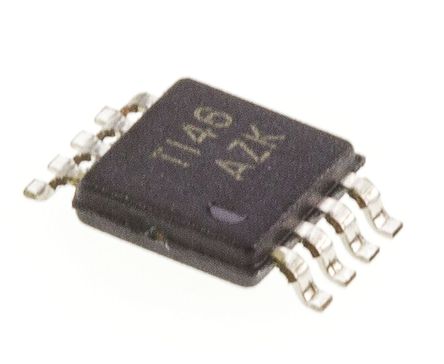

Image is for your reference only,please check specifications for details

SN65LVDS100DGK - TI
Manufacturer:
TI
ManyChip's Part#:
MC10155830
Category:
Voltage Level Translator IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
* Designed for Signaling Rates ≥ 2Gbps * Total Jitter * Low-Power Alternative for the MC100EP16 * Low 100-ps (Maximum) Part-to-Part Skew * 25mV of Receiver Input Threshold Hysteresis Over 0-V to 4V Common-Mode Range * Inputs Electrically Compatible With LVPECL, CML, and LVDS Signal Levels * 3.3V Supply Operation * LVDT Integrates 110Ω Terminating Resistor * Offered in SOIC and MSOP
Stock Locations:
Availability:
15 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.02

Updated at 21/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN65LVDS100DGK is a 2Gbps LVDS/LVPECL/CML to LVDS Repeater/Translator formed by connecting high-speed differential receivers and drivers. The receiver accepts low-voltage differential signaling (LVDS), positive-emitter-coupled logic (PECL) or current-mode logic (CML) input signals at rates up to 2Gbps and repeats it as either an LVDS or PECL output signal. The signal path through the device is differential for low radiated emissions and minimal added jitter. The output is LVDS levels as defined by TIA/EIA-644-A. The output is compatible with 3.3V PECL levels. Both drive differential transmission lines with nominally 100R characteristic impedance. It includes an 110R differential line termination resistor for less board space, fewer components and the shortest stub length possible. It does not include the VBB voltage reference. The VBB provides a voltage reference of typically 1.35V below VCC for use in receiving single-ended input signals.
Low power alternative for the MC100EP16
Inputs electrically compatible with LVPECL, CML and LVDS signal levels
<65ps Total jitter
Low 100ps (Maximum) part-to-part skew
25mV of Receiver input threshold hysteresis over 0 to 4V input voltage range
Green product and no Sb/Br

Show

SN65LVDS100DGK Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	3.00V (min)
Output Current	12 µA
Supply Current	25 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	377 W
Data Rate	2.00 Gbps
Input Capacitance	.6 pF
Rise Time	220 ps
Input Current (Min)	66 μA
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	377 mW
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.97 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
