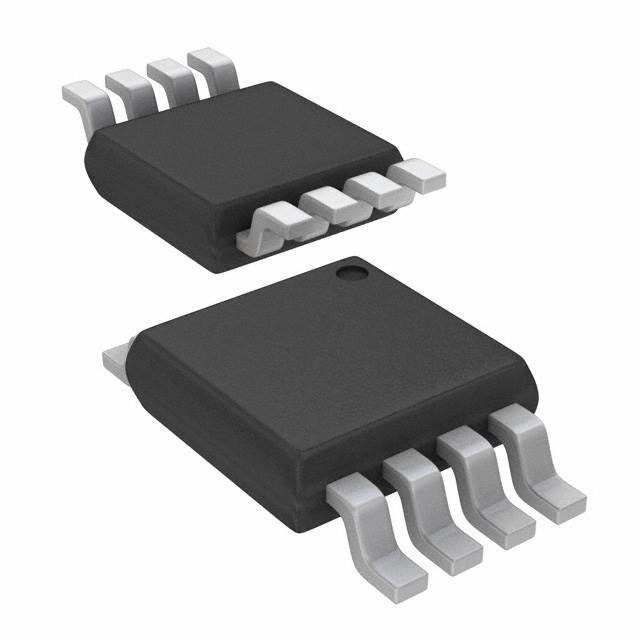

Image is for your reference only,please check specifications for details

SN65LVDT101DGK - TI
Manufacturer:
TI
ManyChip's Part#:
MC13894963
Category:
Voltage Level Translator IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN65LVDT101DGK Voltage Level Translator, LV Family, 2Input, 12µA, 630 ps, 2Gbps, 3V to 3.6V, MSOP-8
Stock Locations:
Availability:
278 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN65LVDT101DGK is a 2Gbps LVDS/LVPECL/CML to LVDS Repeater/Translator accepts low-voltage differential signaling (LVDS), positive-emitter-coupled logic (PECL) or current-mode logic (CML) input signals at rates up to 2Gbps and repeats it as either an LVDS or PECL output signal. The signal path through the device is differential for low radiated emissions and minimal added jitter. The outputs of SN65LVDT101 are LVDS levels as defined by TIA/EIA-644-A. It includes an 110R differential line termination resistor for less board space, fewer components and the shortest stub length possible. They do not include the VBB voltage reference found in the SN65LVDS101. VBB provides a voltage reference of typically 1.35V below VCC for use in receiving single-ended input signals and is particularly useful with single-ended 3.3V PECL inputs. When VBB is not used, it should be unconnected or open.
Total Jitter <65ps
Low-power alternative for the MC100EP16
Low 100ps maximum part-to-part skew
Inputs electrically compatible with LVPECL, CML and LVDS signal levels
LVDT Integrates 110R terminating resistor
25mV of Receiver input threshold hysteresis over 0 to 4V input voltage range
Green product and no Sb/Br

Show

SN65LVDT101DGK Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Voltage (DC)	3.00V (min)
Output Current	0.012 mA
Supply Current	50 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Power Dissipation	481 W
Data Rate	2.00 Gbps
Input Capacitance	0.6 pF
Input Current (Min)	33 μA
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	377 mW
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
