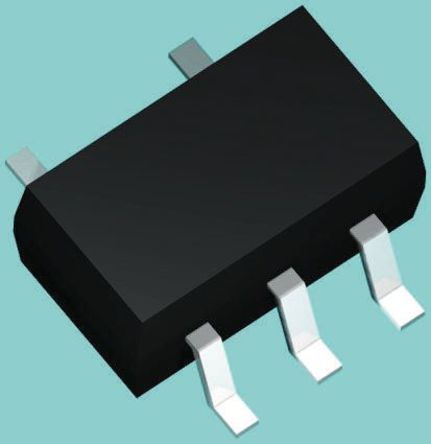

Image is for your reference only,please check specifications for details
- SN74AHC1G14DCKT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11009600
-
Category:Logic Gates
-
Package:SOP
-
Datasheet:Datasheet 3D Model
-
Description:Texas Instruments SN74AHC1G14DCKT – инвертор, тип 74AHC1G14, 1 вход, напряжение входа 8 мА, диапазон напряжений 2 В до 5,5 В, форма упаковки SC-70-5.
-
Stock Locations:
-
Availability:154 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.47
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- С помощью этого устройства Texas Instruments SN74AHC1G14DCKT можно преобразовывать аналоговый входной сигнал в цифровой выходной сигнал с использованием инвертирующего Schmitt-триггера. С помощью выходного сигнала Schmitt-триггера возможно управление электропитанием. Диапазон рабочих температур этого устройства составляет от -40 °C до 125 °C. Продукт упакован в рулонную и рулонную коробку для удобства установки и безопасной доставки. Типичное напряжение питания устройства составляет 2,5|3,3|5 В; минимальное значение напряжения питания – 2 В, а максимальное – 5,5 В.
SN74AHC1G14DCKT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOP |
| Supply Voltage (DC) | 2.00 V (min) |
| Output Current | 8.00 mA |
| Number of Bits | 1 Bit |
| Propagation Delay Max (tpd) | 12.0 ns |
| Number of Gates | 1 Gate |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
