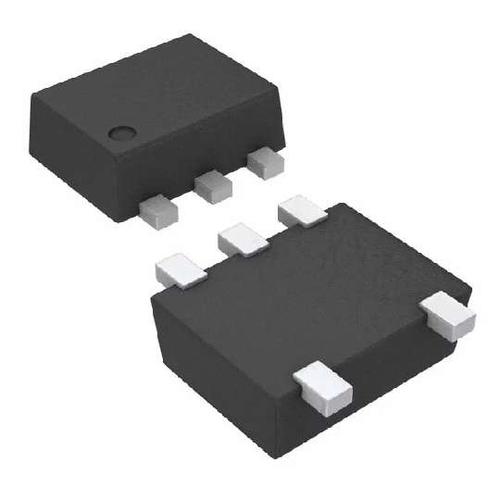

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN74AHCT1G08 device is a single 2-input positive-AND gate. The device performs the Boolean function Y = A • B or Y = A + B in positive logic. Low ICC current allows this device to be used in power-sensitive or battery-powered applications.
SN74AHCT1G08DRLR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-553 |
| Supply Voltage (DC) | 4.50V ~ 5.50V |
| Number of Outputs | 1 Output |
| Output Current | 8.00 mA |
| Number of Circuits | 1 Circuit |
| Number of Bits | 1 Bit |
| Propagation Delay Max (tpd) | 9.00 ns |
| Voltage Nodes | 5.00 V |
| Number of Gates | 1 Gate |
| Output Current Drive | -1.00 mA |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
