SN74HC138DRG4 - TI
Manufacturer:
TI
ManyChip's Part#:
MC34099433
Category:
Logic Controller, Logic IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:

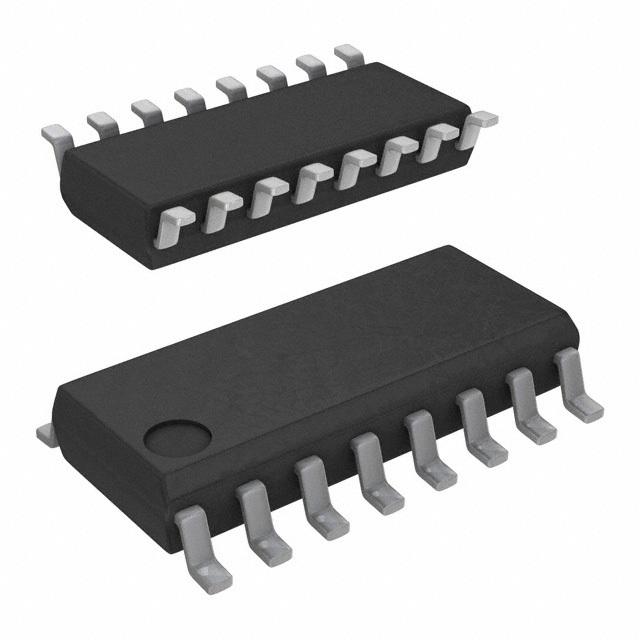

TEXAS INSTRUMENTS SN74HC138DRG4 Decoder / Demultiplexer, HC Family, 8 Output, 2V to 6V, SOIC-16
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.39

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Choose between multiple outputs given a certain selection inputs with this SN74HC138DRG4 from Texas Instruments. This decoder has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.

Show

SN74HC138DRG4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	2.00V ~ 6.00V
Number of Outputs	8 Output
Number of Bits	8 Bit
Voltage Nodes	6.00 V, 5.00 V, 2.00 V
Bandwidth	28.0 MHz
Output Current Drive	-1.00 mA
Number of Inputs	3 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
