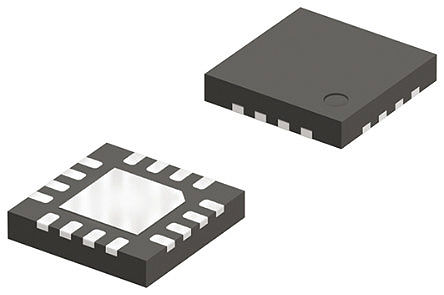

Image is for your reference only,please check specifications for details

SN74LV4051ARGYR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4705183
Category:
Multiplexer IC
Package:
VQFN-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74LV4051ARGYR Analog Multiplexer / Demultiplexer, 1 Circuit, 20μA, 2V to 5.5V, QFN-16
Stock Locations:
Availability:
257 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.25

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

description/ordering information
These 8-channel CMOS analog multiplexers/ demultiplexers are designed for 2-V to 5.5-V VCC
operation. The ’LV4051A devices handle both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V (peak) to be transmitted in either direction. Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital to analog conversion systems.
2-V to 5.5-V VCC Operation
Support Mixed-Mode Voltage Operation on All Ports
High On-Off Output-Voltage Ratio
Low Crosstalk Between Switches
Individual Switch Controls
Extremely Low Input Current
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Protection Exceeds JESD 22
− 2000-V Human-Body Model (A114-A)
− 200-V Machine Model (A115-A)
− 1000-V Charged-Device Model (C101)

Show

SN74LV4051ARGYR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	VQFN-16
Supply Voltage (DC)	2.00V ~ 5.50V
Number of Outputs	1 Output
Supply Current	20 µA
Number of Circuits	1 Circuit
Number of Channels	8 Channel
Number of Bits	8 Bit
Propagation Delay Max (tpd)	7.00 ns
Polarity	Non-Inverting
Voltage Nodes	5.00 V, 3.30 V, 2.50 V
Bandwidth	35 Mhz
Number of Inputs	8 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	35 MHz
Supply Voltage	2V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2 V
	Show
Size-Length	4.15 mm
Size-Width	3.65 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
