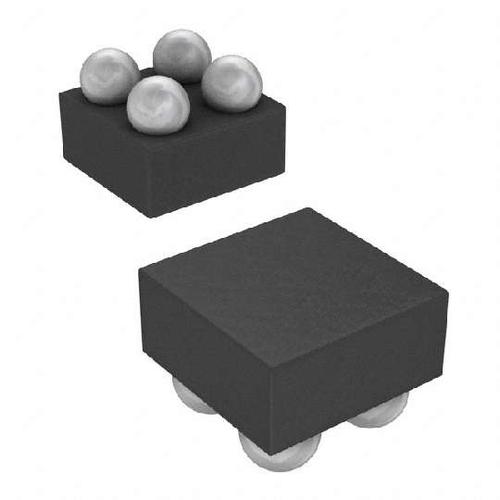

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Available in Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch * Supports 5-V VCC Operation * Inputs Accept Voltages to 5.5 V * Max tpd of 4.6 ns at 3.3 V * Low Power Consumption, 10-μA Max ICC * ±24-mA Output Drive at 3.3 V * Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection * Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II * ESD Protection Exceeds JESD 22 * 2000-V Human-Body Model (A114-A) * 200-V Machine Model (A115-A) * 1000-V Charged-Device Model (C101)

Show

SN74LVC1G17YZVR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	DSBGA-4
Supply Voltage (DC)	1.65V ~ 5.50V
Number of Outputs	1 Output
Number of Channels	1 Channel
Number of Bits	1 Bit
Propagation Delay Max (tpd)	5.00 ns
Number of Gates	1 Gate
Output Current Drive	-1.00 mA
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	0.9 mm
Size-Width	0.9 mm
Size-Height	0.35 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
