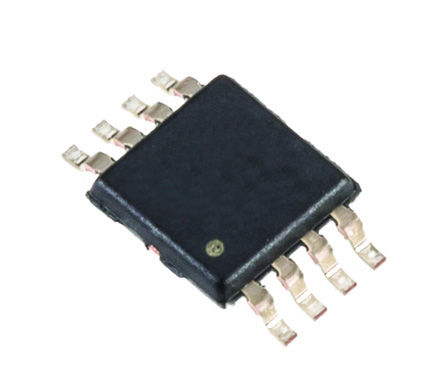

Image is for your reference only,please check specifications for details

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74LVC2G00DCUT is a dual 2-input Positive-NAND Gate designed for 1.65 to 5.5V VCC operation. The device performs the Boolean function Y = (A x B)\ or Y = A\ + B\ in positive logic. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Supports 5V VCC operation
Inputs accept voltages to 5.5V
Maximum tpd of 4.3ns at 3.3V
10µA Maximum ICC low power consumption
±24mA Output drive at 3.3V
Ioff supports live insertion
Partial-power-down mode
Back-drive protection
Latch-up performance exceeds 100mA per JESD 78, Class II
ESD protection exceeds JESD 22
Green product and no Sb/Br

Show

SN74LVC2G00DCUT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Voltage (DC)	1.65V (min)
Number of Outputs	1 Output
Output Current	32 mA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Number of Bits	2 Bit
Propagation Delay Max (tpd)	3.30 ns
Number of Gates	2 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	2.3 mm
Size-Width	2 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
