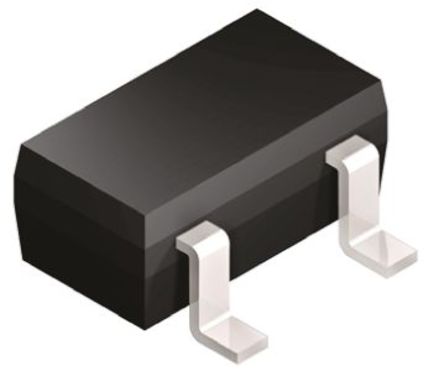

Image is for your reference only,please check specifications for details

MC78PC33NTRG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC9865365
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MC78PC33NTRG Fixed LDO Voltage Regulator, 4.3V to 9V In, 200mV Dropout, 3.3V/150mA Out, SOT-23-5
Stock Locations:
Availability:
226 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC78PC33NTRG is a 3.3V fixed output CMOS Linear Regulator with high output voltage accuracy, low supply current, low-dropout (LDO) voltage and high ripple rejection. The device consists of an internal voltage reference, an error amplifier, resistors, a current limiting circuit and a chip enable circuit. The dynamic Response to line and load is fast, which makes these products ideally suited for use in hand-held communication equipment.
Ultra-low supply current - Typical 35µA in ON mode with no load
0.1µA Standby mode (typical)
High ripple rejection - typical 70dB at f = 1kHz
±100ppm/°C Low temperature-drift coefficient of output voltage (typical)
0.05%/V Excellent line regulation (typical)
±2% High accuracy output voltage
Fast dynamic response to line and load
Built-in chip enable circuit (CE input pin)

Show

MC78PC33NTRG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Operating Voltage	0V ~ 8V
Current Rating	150 mA
Power Rating	250 mW
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	9.00V (max)
Output Voltage	3.3 V
Output Current	150 mA
Number of Positions	5 Position
Polarity	P-Channel
Power Dissipation	250 mW
Quiescent Current	1 µA
voltage rating	200 mV
Input Voltage (Max)	8 V
Input Voltage (Min)	4.3 V
Output Voltage (Min)	3.3 V
Output Current (Max)	150 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Accuracy	±2 %
Supply Voltage	8 V
Input Voltage	≤8 V
	Show
Size-Length	3 mm
Size-Width	1.8 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
