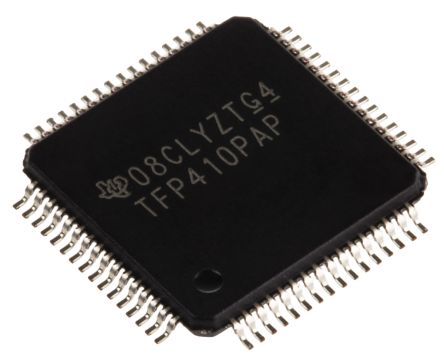

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TFP410PAP is a 165MHz Panel Bus DVI Transmitter provides a universal interface to allow a glueless connection to most commonly available graphics controllers. Some of the advantages of this universal interface include selectable bus widths, adjustable signal levels and differential and single-ended clocking. The adjustable digital interface provides a low-EMI, high-speed bus that connects seamlessly with interfaces. The DVI interface supports flat-panel display resolutions up to UXGA at 165MHz in 24-bit true colour pixel format.
Digital Visual Interface (DVI) compliant
Universal graphics controller interface
Enhanced PLL noise immunity
Enhanced jitter performance
Programmable using I²C serial interface
Monitor detection through hot-plug and receiver detection
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TFP410PAP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	HTQFP-64
Frequency	26 MHz
Supply Voltage (DC)	3.30 V
Supply Current	200 mA
Number of Channels	3 Channel
Number of Positions	64 Position
Power Dissipation	3.26 W
Data Rate	495 Mbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	10 mm
Size-Width	10 mm
Size-Height	1 mm
Weight	0.0041313195792 kg
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
