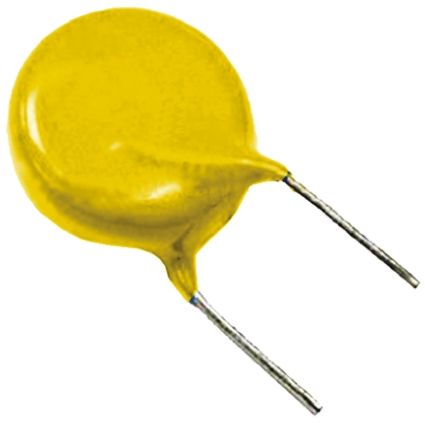

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- With Vishay"s VY1102M35Y5UQ6TV0 single-layer ceramic disc capacitor, you"ll have no problems with heat dissipation. It can withstand a voltage of 760 VAC|500VAC. This high frequency capacitor has a maximum operating temperature of 125 °C. It has a tolerance of 20%. Its capacitance value is 0.001uF. This part has a lead diameter of 0.6 mm and a pitch of 10 mm. The VY1102M35Y5UQ6TV0 high frequency capacitor has a radial termination style. This product is 5(Max) mm deep.
VY1102M35Y5UQ6TV0 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | Radial, Disc |
| Pin Pitch | 10.00 mm |
| Voltage Rating (DC) | 500 V |
| Capacitance | 0.001 µF |
| Capacitance Tolerance | ±20 % |
| Dielectric Characteristic | Y5U |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 5 mm |
| Size-Height | 12 mm |
| Size-Diameter | Φ9.00mm |
| Size-Thickness | 5 mm |
| Material | Y5U/-30℃~+85℃ |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
