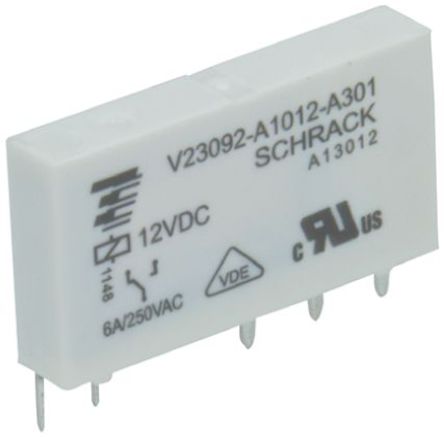

Image is for your reference only,please check specifications for details
- V23092A1012A301 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC43516078
-
Category:Industrial Relay
-
Package:SIP
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 12VDC 848Ω 10A SPDT (( 28mm 5mm 15mm)) THT Slim PCB Relay
-
Stock Locations:
-
Availability:153 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.88
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Electromechanical Relay 12VDC 848Ohm 10A SPDT(28x5x15)mm THT Slim PCB Relay
- Product Highlights
- Relay Type = Slim PCB Relay
- Relay Style = PCB
- SNR Series
- Contact Arrangement = 1 Form C, SPDT, 1 C/O
- Contact Current Rating = 6 A
V23092A1012A301 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | SIP |
| Voltage Rating (AC) | 400 V |
| Current Rating | 6 A |
| Input Voltage (DC) | 12.0 V |
| Contacts Type | SPDT |
| voltage rating | 600 mV |
| Contact Current Rating | 10 A |
| Coil Voltage | 12 V |
| Coil Current | 14.15 mA |
| Coil Power (DC) | 170 mW |
| Coil Resistance | 848 Ω |
| Carry Current | 6.00 A |
| Coil Voltage (DC) | 12 V |
| Input Power (Max) | 1.5 KVA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 12 VDC |
| Show | |
| Size-Length | 28 mm |
| Size-Width | 15 mm |
| Size-Height | 15 mm |
| Contact Material | Silver Tin Oxide |
| Weight | 6.00 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
