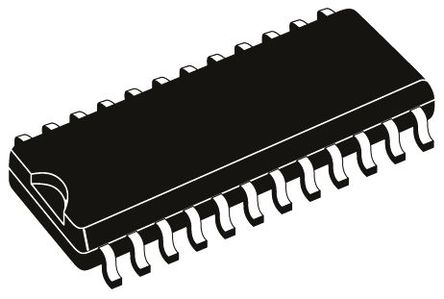

Image is for your reference only,please check specifications for details
- SN74LVC8T245DWR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC16077237
-
Category:Voltage Level Translator IC
-
Package:SOIC-24
-
Datasheet:Datasheet 3D Model
-
Description:Bus Transceiver, LVC Family, 8Input, 50mA, 4.3ns, 1.65V to 5.5V, SOIC-24
-
Stock Locations:
-
Availability:1,114 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.99
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- This 8-bit noninverting bus transceiver uses two separate configurable power-supply rails. The SN74LVC8T245 is optimized to operate with VCCA and VCCB set at 1.65 V to 5.5 V. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65 V to 5.5 V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65 V to 5.5 V. This allows for universal low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5.5-V voltage nodes
- Features
- • Control Inputs VIH/VIL Levels Are Referenced to VCCA Voltage
- • VCC Isolation Feature – If Either VCC Input Is at GND, All Are in the High-Impedance State
- • Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.65-V to 5.5-V Power-Supply Range
- • Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- • ESD Protection Exceeds JESD 22
- – 4000-V Human-Body Model (A114-A)
- – 100-V Machine Model (A115-A)
- – 1000-V Charged-Device Model (C101)
- Applications
- • Personal Electronic
- • Industrial
- • Enterprise
- • Telecom
SN74LVC8T245DWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SOIC-24 |
| Supply Voltage (DC) | 1.65V ~ 5.50V |
| Number of Outputs | 8 Output |
| Output Current | 50 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 8 Channel |
| Number of Positions | 24 Position |
| Number of Bits | 8 Bit |
| Propagation Delay Max (tpd) | 4.20 ns |
| Voltage Nodes | 5.00 V, 3.30 V, 2.50 V, 1.80 V |
| Output Current Drive | -1.00 mA |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.65V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 15.6 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
