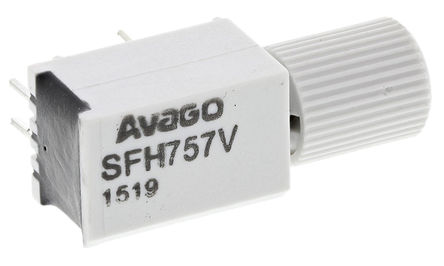

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SFH757V is a low-cost transmitter for simple optical data transmission with polymer optical fiber. This very robust 650nm LED can be used for speeds up to 100MBd.
- The V-housing allows easy coupling of unconnectorized 2.2mm plastic optical fiber by means of an axial locking screw.
- Order code SP000063858
- ### Features
- Low-cost 650nm transmitter with high-speed LED
- V-housing with axial locking screw for easy fiber coupling of 2.2mm plastic fiber
- Molded microlens for efficient coupling
- Light tight housing for superior crosstalk
- Auto insertable and wave solderable
- RoHS compliant
SP000063858 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 4 Pin |
| Capacitance | 30 pF |
| Number of Positions | 4 Position |
| Forward Voltage | 2 V |
| Wavelength | 650 nm |
| Peak Wavelength | 685 nm |
| Power Dissipation | 120 mW |
| Rise Time | 14 ns |
| Forward Current | 50 mA |
| Forward Current (Max) | 50 mA |
| Fall Time | 16 ns |
| Fall Time (Max) | 18 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 120 mW |
| Show | |
| Size-Length | 24 mm |
| Size-Width | 9 mm |
| Size-Height | 8.8 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
