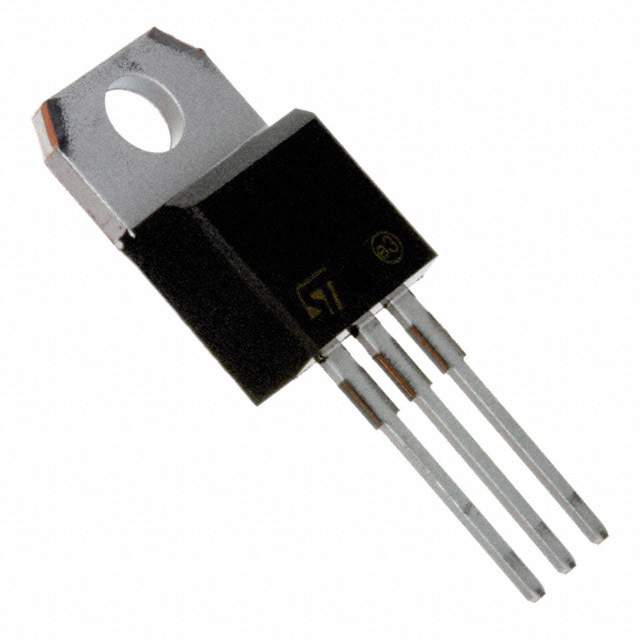

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ST13009 is a NPN fast-switching Power Transistor manufactured using high voltage Multi Epitaxial Planar technology for high switching speeds and high voltage capability. It uses a hollow emitter structure to enhance switching speeds.
Low spread of dynamic parameters
High voltage capability
Minimum lot-to-lot spread for reliable operation
Very high switching speed

Show

ST13009 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	900 V
Current Rating	12.0 A
Number of Positions	3 Position
Polarity	NPN
Power Dissipation	100 W
Breakdown Voltage (Collector to Emitter)	400 V
Continuous Collector Current	12A
hFE Min	10 @8A, 5V
Input Power (Max)	100 W
DC Current Gain (hFE)	10
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	100000 mW
	Show
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
