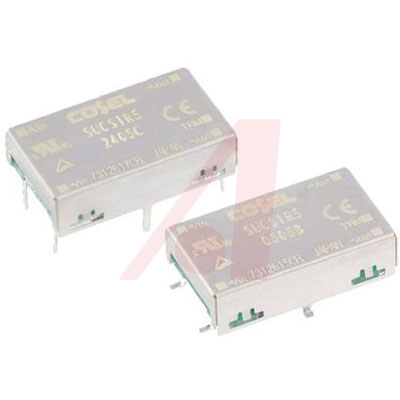

Image is for your reference only,please check specifications for details
- SUCS1R52405BP - Cosel
-
Manufacturer:Cosel
-
ManyChip's Part#:MC131784257
-
Category:DC to DC Converter, DC/DC Converter
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Module DC-DC 24Vin 1Out 5V 0.3A 1.5W 5Pin SMD
-
Stock Locations:
-
Availability:1,308 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 12.26
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **SUCS Series**
- Rated Input: DC4.5 - 9V, DC9 - 18V, DC18 - 36V, DC36 - 76V, Rated Output Wattage: 1.5 - 10W
- **Features**
- * SMD mounting type and through-hole mounting type
- * High efficiency (synchronous rectifier circuit)
- * Built-in overcurrent protection circuits
- * Built-in remote ON/OFF (SU/SUC 3, 6, 10)
- * High reliability: not built-in aluminum and tantalum electrolytic capacitor
- * SUCS Series have been added coating option (May-09)
SUCS1R52405BP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SMD |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 0.3 A |
| Output Power | 1.5 W |
| Input Voltage (Max) | 18 V |
| Input Voltage (Min) | 9 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 9V ~ 18V |
| Show | |
| Size-Length | 0.88 in |
| Size-Width | 0.52 in |
| Size-Height | 0.28 in |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
