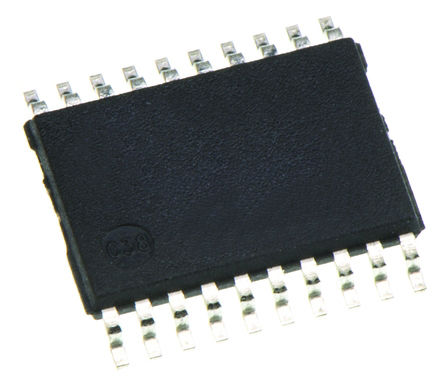

Image is for your reference only,please check specifications for details
- ST2378ETTR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC17152404
-
Category:Voltage Level Translator IC
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:IC XLATOR 8Bit DUAL ESD 20TSSOP
-
Stock Locations:
-
Availability:266 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.97
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- If you are looking for a device to shift between voltage levels in your microprocessor-based circuit, then the ST2378ETTR level translator from STMicroelectronics is for you. With an open drain|totem pole output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device has a typical operating supply voltage of 1.8|2.5|3.3|5 V. Its minimum operating supply voltage of 1.71 V, while its maximum is 5.5 V.
ST2378ETTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Supply Voltage (DC) | 1.71V (min) |
| Output Current | 25.0 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 8 Channel |
| Number of Positions | 20 Position |
| Number of Bits | 8 Bit |
| Data Rate | 13.0 Mbps |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Output Channels | 1 Channel |
| Supply Voltage | 1.7V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 1.71 V |
| Show | |
| Size-Length | 6.6 mm |
| Size-Width | 4.5 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
