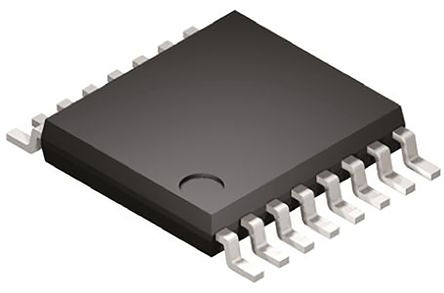

Image is for your reference only,please check specifications for details

ST3232CTR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC8689030
Category:
Interface IC, Interface Controller
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS ST3232CTR 3 to 5.5V, Low power, up to 400Kbps RS-232 Driver and Receiver, TSSOP-16
Stock Locations:
Availability:
2,500 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.92

Updated at 27/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ST3232CTR is a RS-232 Driver and Receiver. The ST3232 is a 3V powered EIA/TIA-232 and V.28/V.24 communication interface with low power requirements, high data-rate capabilities. It has a proprietary low dropout transmitter output stage providing true RS-232 performance from 3 to 5.5V supplies. The device requires only four small 0.1mF standard external capacitors for operations from 3V supply. The device is guaranteed to run at data rates of 250kbps while maintaining RS-232 output levels.
300µA Supply current

Show

ST3232CTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Supply Voltage (DC)	3.00V (min)
Output Voltage	5.40 V
Supply Current	1 mA
Number of Channels	2 Channel
Number of Positions	16 Position
Data Rate	400 kbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
