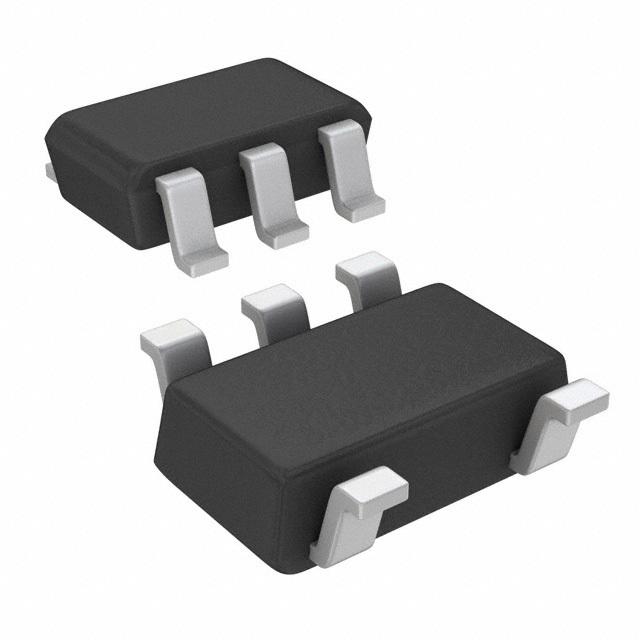

Image is for your reference only,please check specifications for details
- ST715M33R - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC21908536
-
Category:Voltage Regulator
-
Package:SOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:LDO Regulator Pos 3.3V 0.085A 5Pin SOT-23 T/R
-
Stock Locations:
-
Availability:1,689 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.43
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 85mA SOT-23-5
ST715M33R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 85 mA |
| Number of Positions | 5 Position |
| Power Dissipation | 1 W |
| Quiescent Current | 6.5 µA |
| voltage rating | 0.5V @85mA |
| Output Power | 1 W |
| Input Voltage (Max) | 24 V |
| Input Voltage (Min) | 3.8 V |
| Output Current (Max) | 0.085 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1000 mW |
| Input Voltage | ≤24 V |
| Show | |
| Size-Height | 1.3 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
