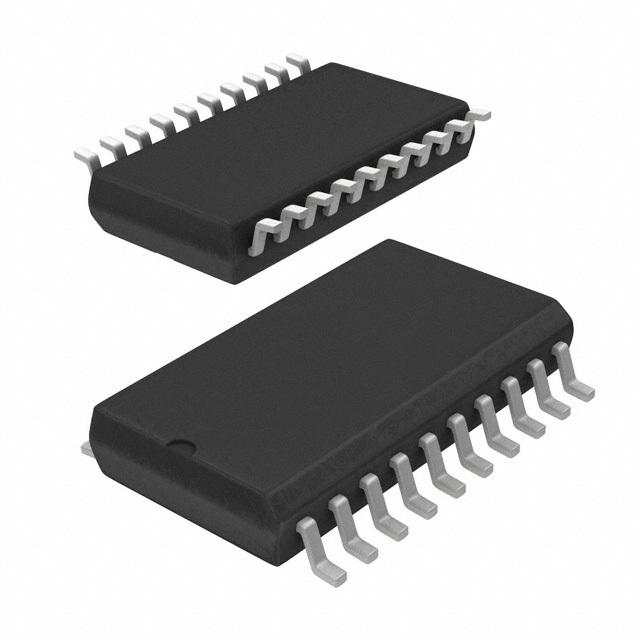

Image is for your reference only,please check specifications for details
- ST7FLITE39F2M6 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC11464051
-
Category:Microcontroller, MCU IC
-
Package:SOIC-20
-
Datasheet:Datasheet 3D Model
-
Description:STMICROELECTRONICS ST7FLITE39F2M6 8Bit Microcontroller, Single Voltage Flash, ST7FLITE3x, 8MHz, 8KB, 384Byte, 20Pins, SOIC
-
Stock Locations:
-
Availability:258 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.81
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The ST7FLITE39F2M6 is a 8-bit Microcontroller featuring an enhanced instruction set. The ST7LITE3 features flash memory with byte-by-byte in-circuit programming (ICP) and in-application programming (IAP) capability. Under software control, the ST7LITE3 device can be placed in WAIT, SLOW or HALT mode, reducing power consumption when the application is in idle or standby state. The enhanced instruction set and addressing modes of the ST7 offer both power and flexibility to software developers, enabling the design of highly efficient and compact application code. In addition to standard 8-bit data management, true -bit manipulation, 8x8 unsigned multiplication and indirect addressing modes.
- 256byte Data EEPROM
- Enhanced reset system
- Enhanced low voltage supervisor (LVD)
- Internal RC 1% Oscillator, crystal/ceramic resonator or external clock
- Five power saving modes - Halt, active-halt, wait and slow, auto wake up from halt
- Configurable watchdog timer
- Two 8-bit Lite timers with prescaler, 1 real-time base and 1 input capture
- Two 12-bit Auto-reload timers
- Master/slave LINSCI™ asynchronous serial interface
- SPI synchronous serial interface
- 10 Interrupt vectors plus TRAP and RESET
- 12 External interrupt lines (on 4 vectors)
- 8-bit Data manipulation
- 63 Basic instructions with illegal opcode detection
- 17 Main addressing modes
- 8 x 8 Unsigned multiply instructions
ST7FLITE39F2M6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Frequency | 16 MHz |
| Supply Voltage (DC) | 5.00 V, 5.50 V (max) |
| Number of Positions | 20 Position |
| Clock Speed | 8 MHz |
| RAM Memory Size | 384 b |
| Number of Bits | 8 Bit |
| Power Dissipation | 330 mW |
| FLASH Memory Size | 8 KB |
| Number of I/O Pins | 15 IO |
| Access Time | 16.0 µs |
| Memory Size | 8000 B |
| Number of ADCs | 1 ADC |
| Number of Inputs and Outputs | 15 Input IO |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 330 mW |
| Supply Voltage | 2.7.5.5 VDC |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 13 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
