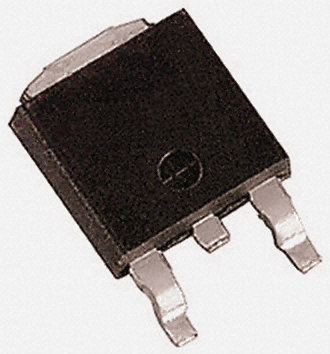

Image is for your reference only,please check specifications for details

STD10NF10 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC113276738
Category:
MOSFET, MOSFET Transistor
Package:
TO-252
Datasheet:
Datasheet 3D Model
Description:
N-CHANNEL 100V - 0.115Ω - 13A IPAK/DPAK LOW GATE CHARGE STRIPFET II POWER MOSFET
Stock Locations:
Availability:
182 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.22

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

STD10NF10 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252
Drain to Source Resistance (on) (Rds)	130 mΩ
Power Dissipation	50 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	100 V
Input Capacitance (Ciss)	460pF @25V(Vds)
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	50 W
	Show
Size-Length	6.6 mm
Size-Width	6.2 mm
Size-Height	2.4 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
