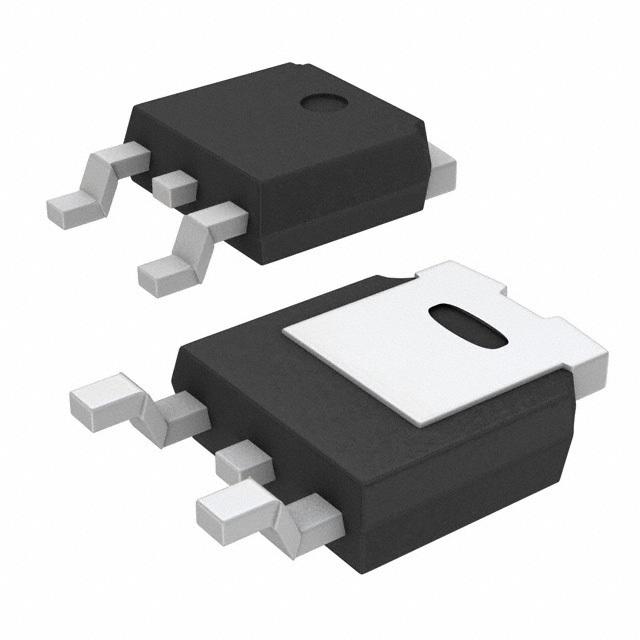

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- In addition to amplifying electronic signals, you"ll be able to switch between various lines with the STD30N10F7 power MOSFET, developed by STMicroelectronics. Its maximum power dissipation is 50000 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device utilizes stripfet technology. This N channel MOSFET transistor operates in enhancement mode. This MOSFET transistor has an operating temperature range of -55 °C to 175 °C.
STD30N10F7 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Polarity | N-CH |
| Power Dissipation | 50 W |
| Input Capacitance | 1270 pF |
| Drain to Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Ids) | 32A |
| Rise Time | 17.5 ns |
| Input Capacitance (Ciss) | 1270pF @50V(Vds) |
| Input Power (Max) | 50 W |
| Fall Time | 5.6 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 50W (Tc) |
| Show | |
| Size-Length | 6.6 mm |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
