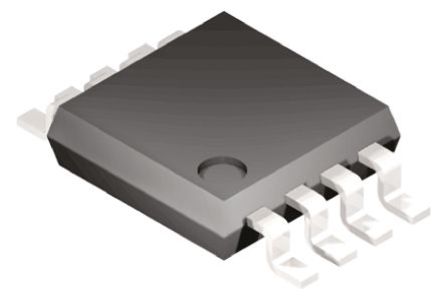

AD8422ARMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC485411
Category:
Instrumentation Amplifier IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8422ARMZ Instrument Amplifier, 1 Amplifier, 70μV, 0.8V/µs, 2.2MHz, 3.5V to 36V, MSOP
Stock Locations:
Availability:
11 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.58

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8422ARMZ is a high precision rail-to-rail Instrumentation Amplifier delivers the best performance per unit microampere in the industry. The AD8422 processes signals with ultralow distortion performance that is load independent over its full output range. The AD8422 is the third generation development of the industry-standard AD620. The AD8422 employs new process technologies and design techniques to achieve higher dynamic range and lower errors than its predecessors, while consuming less than one-third of the power. The AD8422 uses the high performance pin-out introduced by the AD8221. Very low bias current makes the AD8422 error-free with high source impedance, allowing multiple sensors to be multiplexed to the inputs. Low voltage noise and low current noise make the AD8422 an ideal choice for measuring a Wheatstone bridge. The wide input range and rail-to-rail output of the AD8422 bring all of the benefits of a high performance in-amp to single-supply applications.
Low power and low noise
Excellent AC specifications
High precision DC performance
40V from opposite supply Input overvoltage protection

Show

AD8422ARMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Current	300 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	86 dB
Bandwidth	2.2 MHz
Slew Rate	800 mV/μs
Gain Bandwidth Product	2.2 MHz
Input Offset Voltage	70 µV
Input Bias Current	500 pA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	2.2 MHz
Minimum CMRR Range	86 dB
Supply Voltage	3.5V ~ 36V
Supply Voltage (Max)	30V ~ 50V
	Show
Size-Length	3.2 mm
Size-Width	3.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
