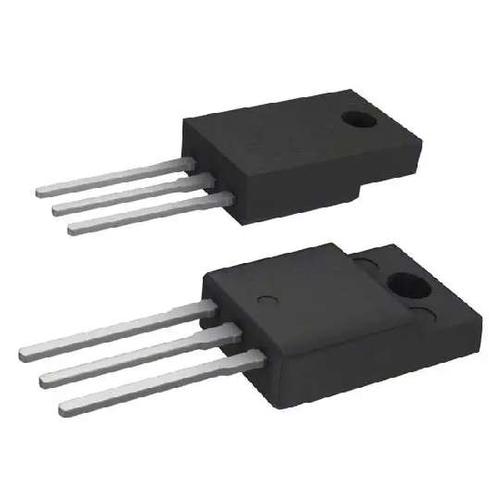

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 1200V 12A (Tc) 40W (Tc) Through Hole TO-220FP
STF12N120K5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.62 Ω |
| Polarity | N-CH |
| Power Dissipation | 40 W |
| Threshold Voltage | 4 V |
| Drain to Source Voltage (Vds) | 1200 V |
| Continuous Drain Current (Ids) | 12A |
| Rise Time | 11 ns |
| Input Capacitance (Ciss) | 1370pF @100V(Vds) |
| Fall Time | 18.5 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 40W (Tc) |
| Show | |
| Size-Length | 16.4 mm |
| Size-Width | 10.4 mm |
| Size-Height | 4.6 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Compliant with Exemption |
| Lead-Free Status | |
| ECCN Code | EAR99 |
