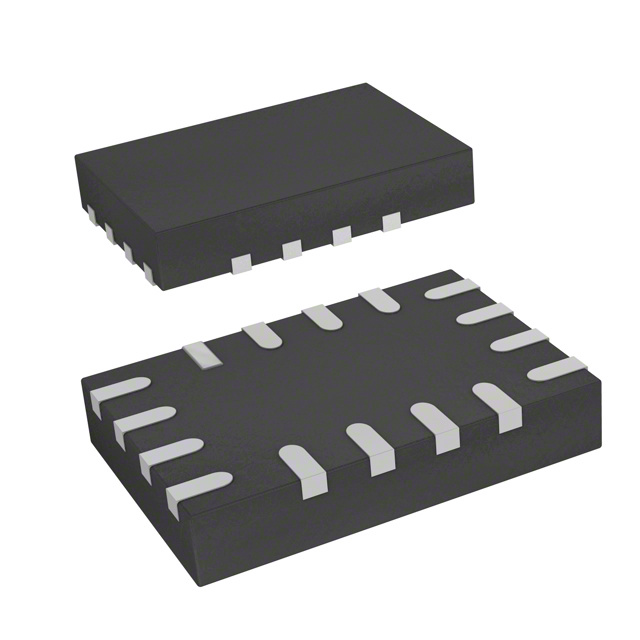

Image is for your reference only,please check specifications for details
- STG3692QTR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC22621503
-
Category:Interface IC, Interface Controller
-
Package:QFN-16
-
Datasheet:Datasheet 3D Model
-
Description:STG3692 Series SPDT 4.3V 5.2Ω SMT Low Voltage High Bandwidth Switch QFN-16
-
Stock Locations:
-
Availability:9,158 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.43
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The STG3692 is a high-speed CMOS low voltage quad analog S.P.D.T. (single pole dual throw) switch or 2:1 multiplexer/demultiplexer switch fabricated in silicon gate C2MOS technology. It is designed to operate from 1.65 V to 4.3 V, making this device ideal for portable applications.
- The nSEL inputs are provided to control the switch. The switch S1 is ON (connected to common ports Dn) when the nSEL input is held high and OFF (high impedance state exists between the two ports) when SEL is held low; the switch S2 is ON (it is connected to common port D) when the nSEL input is held low and OFF (high impedance state exists between the two ports) when nSEL is held high.
- Additional key features are fast switching speed, break-before-make delay time and ultra low power consumption. All inputs and outputs are equipped with protection circuits against static discharge, giving them ESD immunity and transient excess voltage.
- **Key Features**
- Ultra low power dissipation:
- ICC = 0.2 μA (max.) at TA = 85 °C
- Low “ON” resistance:
- RON = 4.6 Ω (TA = 25 °C) at VCC = 4.3 V
- RON = 5.8 Ω (TA = 25 °C) at VCC = 3.0 V
- Wide operating voltage range:
- VCC (opr) = 1.65 V to 4.3 V single supply
- 4.3 V tolerant and 1.8 V compatible threshold on digital control input at VCC = 2.3 V to 3.0 V
- Typical bandwidth (-3 dB) at 800 MHz on all channels
- Latch-up performance exceeds 100 mA per JESD 78, Class II
- ESD performance exceeds JESD22
- 2000-V human body model (A114-A)
- USB (2.0) high-speed (480 Mbps) signal switching compliant
STG3692QTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | QFN-16 |
| Number of Outputs | 8 Output |
| Supply Current | 0.1 µA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Number of Positions | 16 Position |
| Power Dissipation | 1.12 W |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 800 MHz |
| Power Dissipation (Max) | 1120 mW |
| Supply Voltage | 1.65V ~ 4.3V |
| Supply Voltage (Max) | 4.3 V |
| Supply Voltage (Min) | 1.65 V |
| Show | |
| Size-Length | 2.6 mm |
| Size-Width | 1.8 mm |
| Size-Height | 0.45 mm |
| Operating Temperature | -55℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
