STGIPN3H60 ST Microelectronics - IGBT Transistor, IGBT Module

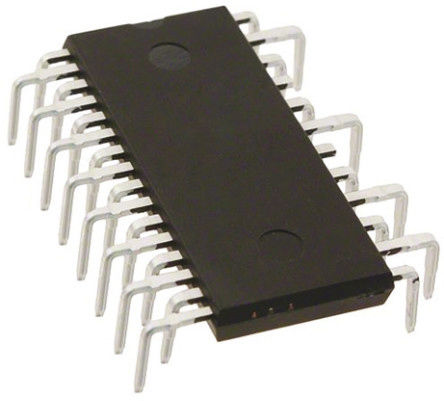

Image is for your reference only,please check specifications for details

STGIPN3H60 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC7321532
Category:
IGBT Transistor, IGBT Module
Package:
DIP-26
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STGIPN3H60 Интеллектуальный силовой модуль (IPM), IPM, IGBT, 600В, 3А, 1кВ, NDIP, SLLIMM-nano
Stock Locations:
Availability:
288 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.18

Updated at 28/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Этот интеллектуальный силовой модуль реализует компактный высокопроизводительный привод переменного тока в простой и надежной конструкции. Он состоит из шести IGBT-транзисторов с обратными диодами и трех полумостовых HVIC-микросхем для управления затворами, обеспечивая низкий уровень электромагнитных помех благодаря оптимизированной скорости переключения. Корпус оптимизирован для тепловых характеристик и компактности во встроенных двигателях или других маломощных устройствах с ограниченным монтажным пространством.
Оптимизирован для низкого уровня электромагнитных помех
Компараторы входов с гистерезисом и подтягивающими/стягивающими резисторами для уровней CMOS/TTL 3,3 В, 5 В, 15 В
Блокировка при пониженном напряжении
Внутренний бустерный диод
Функция блокировки
Функция интеллектуального отключения
Компаратор для защиты от неисправностей по перегреву и перегрузке по току
Операционный усилитель для расширенного измерения тока
Оптимизированная распиновка для удобной компоновки платы

Show

STGIPN3H60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	26 Pin
Case/Package	DIP-26
Isolation Voltage	1000 VDC
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	8 W
	Show
Size-Length	29.25 mm
Size-Width	12.55 mm
Size-Height	4.4 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
