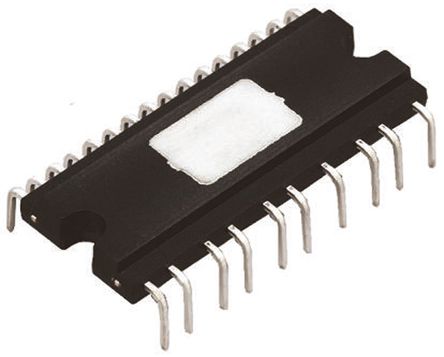

Image is for your reference only,please check specifications for details

STGIPS10K60A - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC21688703
Category:
IGBT Transistor, IGBT Module
Package:
SDIP-25
Datasheet:
Datasheet 3D Model
Description:
STGIPS10K60 Series 600V 10A 3 Phase IGBT Inverter Bridge Through Hole-SDIP-25L
Stock Locations:
Availability:
24 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 20.47

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STGIPS10K60A is a SLLIMM™ small low-loss Intelligent Moulded Module provides a compact, high performance AC motor drive in a simple, rugged design. Combining ST proprietary control IC with the most advanced short-circuit rugged IGBT system technology. It is ideal for 3-phase inverters in applications such as home appliances and air conditioners. It features IPM 10A/600V, 3-phase IGBT inverter bridge including control ICs for gate driving and freewheeling diodes.
Short-circuit rugged IGBT
VCE(sat) negative temperature coefficient
3.3/5/15V CMOS/TTL inputs comparators with hysteresis and pull-down resistor
Undervoltage lockout
Internal bootstrap diode
Interlocking function
DBC substrate leading to low thermal resistance
2500VRMS/minute Isolation rating
5kR NTC thermistor for temperature control

Show

STGIPS10K60A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	25 Pin
Case/Package	SDIP-25
Number of Positions	25 Position
Polarity	N-Channel
Power Dissipation	33 W
Isolation Voltage	2500 VDC
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	33 W
	Show
Size-Length	44.9 mm
Size-Width	22.5 mm
Size-Height	6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
