76HPSB08GWRT - Grayhill
Manufacturer:
Grayhill
ManyChip's Part#:
MC42367519
Category:
DIP Switch, SIP Switch
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:

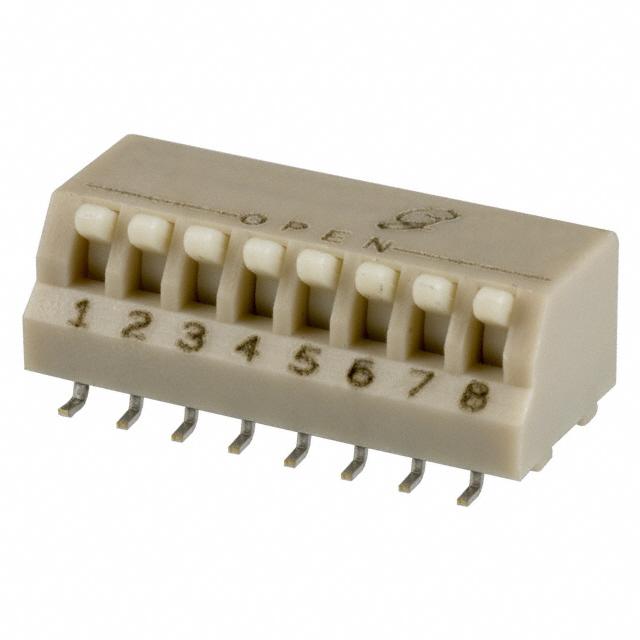

GRAYHILL 76HPSB08GWRT DIP / SIP Switch, Piano Key, 8Circuits, SPST, SMD, 76HP Series, DIP Unsealed, 30VDC
Stock Locations:
Availability:
263 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.55

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Grayhill 76 Series Through-Hole DIP Switches**
The 76 series of through-hole DIP switches from Grayhill are easy to installl while being more convenient to use than pin headers and jumper blocks. This series of SPST DIP switches are available in rocker, PIANO-DIP and raised & recessed styles.

Show

76HPSB08GWRT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	DIP
Pin Pitch	2.54 mm
Voltage Rating (DC)	30 V
Current Rating	150 mA
Insulation Resistance	2000 MΩ
Contacts Type	SPST
Number of Circuits	8 Circuit
Number of Positions	8 Position
Contact Resistance	30 mΩ
Current Rating (Max)	0.15A @30VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	30 VDC
Voltage Rating (DC Max)	30 V
Maximum Contact Resistance (Max)	30 mΩ
	Show
Size-Length	22.4 mm
Size-Width	10.77 mm
Size-Height	8.57 mm
Contact Material	Copper Alloy
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509065
ECCN Code	EAR99
