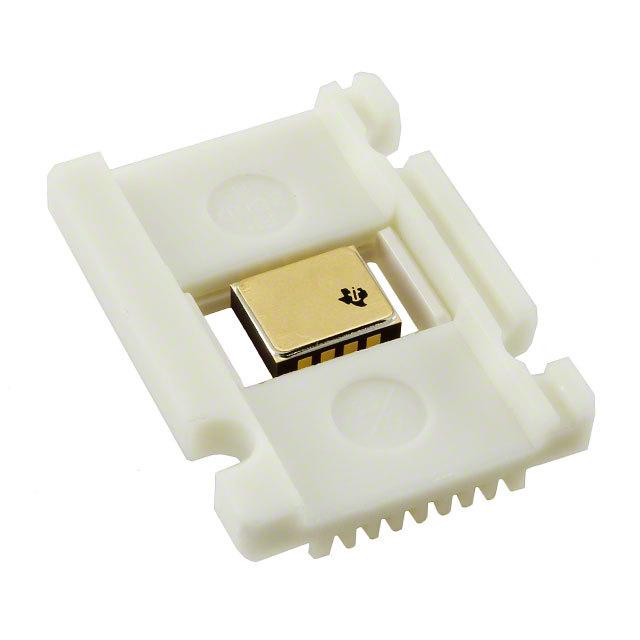

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The SN65HVD233 is used in applications employing the controller area network (CAN) serial
- communication physical layer in accordance with the ISO 11898 standard, with the exception that the thermal shutdown is removed. As a CAN transceiver, the device provides transmit and receive capability between the differential CAN bus and a CAN controller, with signaling rates up to 1 Mbps.
- Designed for operation in especially harsh environments, the device features cross wire, overvoltage, and loss-of-ground protection to ±36 V, with common-mode transient protection of ±100 V. This device operates over a –7-V to 12-V common-mode range with a maximum of 60 nodes on a bus.
- Features
- • Bus-Pin Fault Protection Exceeds ±36 V
- • Bus-Pin ESD Protection Exceeds 16-kV Human Body Model (HBM)
- • Compatible With ISO 11898
- • Signaling Rates(1) up to 1 Mbps
- • Extended –7-V to 12-V Common-Mode Range
- • High-Input Impedance Allows for 120 Nodes
- • LVTTL I/Os Are 5-V Tolerant
- • Adjustable Driver Transition Times for Improved Signal Quality
- • Unpowered Node Does Not Disturb the Bus
- • Low-Current Standby Mode: 200 µA Typical
- • Power-Up and Power-Down Glitch-Free Bus Inputs and Outputs
- – High-Input Impedance With Low VCC
- – Monolithic Output During Power Cycling
- • Loopback for Diagnostic Functions Available
- • DeviceNet™ Vendor ID #806(1)
- The signaling rate of a line is the number of voltage transitions that are made per second expressed in the units bps (bits per second).
- Applications
- • Down-Hole Drilling
- • High-Temperature Environments
- • Industrial Automation
- – DeviceNet Data Buses
- – Smart Distributed Systems (SDS™)
- • SAE J1939 Data Bus Interfaces
- • NMEA 2000 Data Bus Interfaces
- • ISO 11783 Data Bus Interfaces
- • CAN Data Bus Interfaces
- • Controlled Baseline
- • One Assembly or Test Site
- • One Fabrication Site
- • Available in Extreme (–55°C to 210°C) Temperature Range(1)
- • Extended Product Life Cycle
- • Extended Product-Change Notification
- • Product Traceability
SN65HVD233SHKJ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | CDFF-8 |
| Supply Voltage (DC) | 3.00V ~ 3.60V |
| Supply Current | 6 mA |
| Power Dissipation | 114 mW |
| Drivers Per Package | 1 |
| Operating Temperature (Max) | 210 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Show | |
| Operating Temperature | -55℃ ~ 210℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
