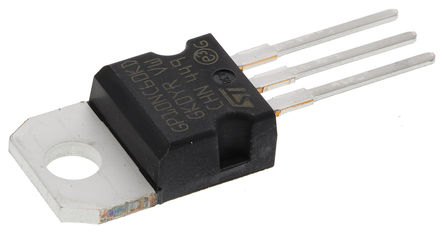

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STGP10NC60KD is a 600V short-circuit rugged IGBT that utilizes the advanced Power MESH™ process resulting in an excellent trade-off between switching performance and low on-state behaviour. The IGBT is ideal for use in SMPS and PFC in both hard switch and resonant topologies. Improved switch-off energy spread versus increasing temperature result in reduced switching losses.
Lower on-voltage drop
Lower CRES/CIES ratio (no cross-conduction susceptibility)
Very soft ultra fast recovery anti-parallel diode
10µs Short-circuit withstand time
Low VCE (sat) for reduced conduction losses
Tight parameter distribution for design simplification and easy paralleling

Show

STGP10NC60KD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	600 V
Current Rating	20.0 A
Number of Positions	3 Position
Polarity	N-Channel
Power Dissipation	60 W
Rise Time	6.00 ns
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	22 ns
Input Power (Max)	65 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	60000 mW
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
