STGP19NC60SD ST Microelectronics - IGBT Transistor, IGBT Module

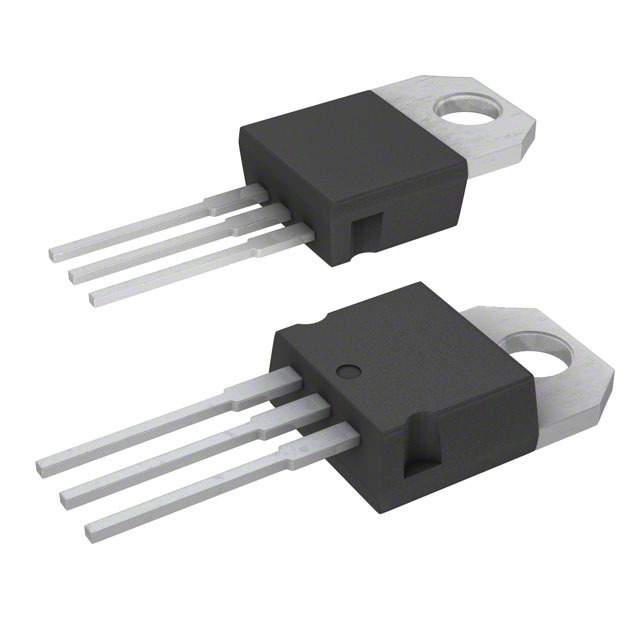

Image is for your reference only,please check specifications for details

STGP19NC60SD - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC17073714
Category:
IGBT Transistor, IGBT Module
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
Транзистор IGBT чип, N-канальный, 600В, 40А, 125000мВт, 3-выводный (3+Tab) TO-220, трубка
Stock Locations:
Availability:
240 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Транзистор IGBT STGP19NC60SD от STMicroelectronics является лучшим электронным ключом для быстрого переключения. Его максимальная рассеиваемая мощность составляет 125000 мВт. Он имеет максимальное напряжение коллектор-эмиттер 600 В. Чтобы предотвратить повреждение компонентов при массовой упаковке, данное изделие поставляется в трубчатой упаковке, что обеспечивает дополнительную защиту за счет хранения отдельных деталей во внешней трубке. Он выполнен в одиночной конфигурации. Этот IGBT-транзистор имеет минимальную рабочую температуру -55 °C и максимальную 150 °C.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Dissipation	125000 mW
Breakdown Voltage (Collector to Emitter)	600 V
Reverse recovery time	31 ns
Rating Power (Max)	130 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	125000 mW
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
