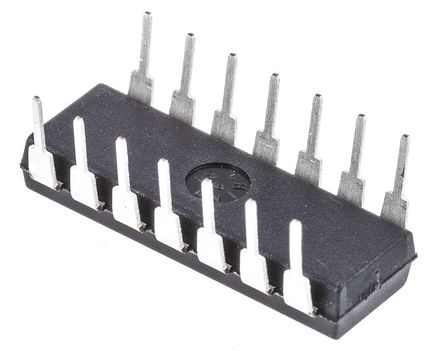

ICL7650SCPDZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC23831814
Category:
Operational Amplifier, OP Amp IC
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
INTERSIL ICL7650SCPDZ Operational Amplifier, Single, 1 Amplifier, 2MHz, 2.5V/µs, 4.5V to 16V, DIP, 14Pins
Stock Locations:
Availability:
109 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.81

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICL7650SCPDZ is a 2MHz Super Chopper-stabilized Operational Amplifier offers exceptionally low input offset voltage and is extremely stable with respect to time and temperature. It is a direct replacement for the industry-standard ICL7650 offering improved input offset voltage, lower input offset voltage temperature coefficient, reduced input bias current and wider common mode voltage range. All improvements are highlighted in bold italics in the Electrical Characteristics section. Critical parameters are guaranteed over the entire commercial temperature range. Intersil"s unique CMOS chopper-stabilized amplifier circuitry is user-transparent, virtually eliminating the traditional chopper amplifier problems of intermodulation effects, chopping spikes and over range lockup.
Guaranteed maximum input offset voltage for all temperature ranges
Low long-term and temperature drifts of input offset voltage
10pA Guaranteed max input bias current
Extremely wide common-mode voltage range +3.5 to -5V
2mA Reduced supply current
Guaranteed minimum output source/sink current
150dB Extremely high gain
140dB Extremely high CMRR and PSRR
Unity-gain compensated
Clamp circuit to avoid overload recovery problems and allow comparator use
Extremely low chopping spikes at input and output
Improved, direct replacement for industry-standard ICL7650 and other second-source parts
ESD sensitive device, take proper precaution while handling the device.

Show

ICL7650SCPDZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Supply Current	2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	14 Position
Common Mode Rejection Ratio	120 dB
Bandwidth	2 MHz
Slew Rate	2.50 V/μs
Gain Bandwidth Product	2 MHz
Thermal Shutdown	No
Input Offset Voltage	700 µV
Input Bias Current	4 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	2 MHz
Minimum CMRR Range	120 dB
Supply Voltage	4.5V ~ 16V
Supply Voltage (Max)	16 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	19.68 mm
Size-Width	7.11 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
