Description

The Power PCB Relay RT2 series from TE Connectivity are through hole PCB relays used for general purpose applications. These relays are used in boiler control, timers, garage door control, POS automation and interface modules.
DPDT or DPST-NO contact configurations
AC and DC coils available based on ordering
Switching capacity of 8A at 250VAC based on versions
5KV/10mm isolation between coil and contact
Ambient temperature of 85°C (DC coil)
WG version has product in accordance to IEC 60335-1
Reflow version for THR (Through-Hole Reflow) soldering process
Compliance to VDE, UL and CSA standards
Available in flux proof and wash tight version
Class F coil isolation

Show

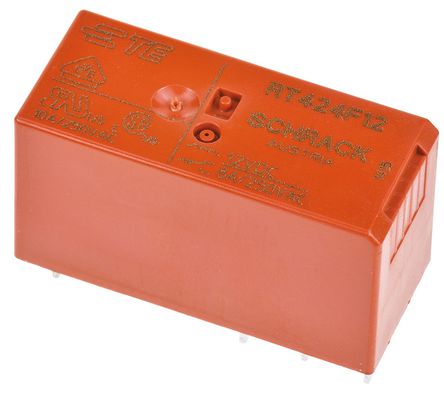

RT424F12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	9 Pin
Case/Package	600
Insulation Resistance	10.0 GΩ
Input Voltage (DC)	12.0 V
Contacts Type	DPDT
Power Consumption	600 mW
voltage rating	8.40 V
Contact Current Rating	8 A
Coil Voltage	12 VDC
Coil Current	50 mA
Coil Power (DC)	600 mW
Coil Resistance	240 Ω
Carry Current	8.00 A
Switching Current	8 A
Coil Voltage (DC)	12 V
Coil Power	600 mW
Input Power (Max)	2 KVA
Switching Current (Max)	8 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	12 VDC
	Show
Size-Length	29 mm
Size-Width	15.7 mm
Size-Height	15.7 mm
Contact Material	Silver Nickel
Weight	10.0 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536490080
ECCN Code	EAR99
