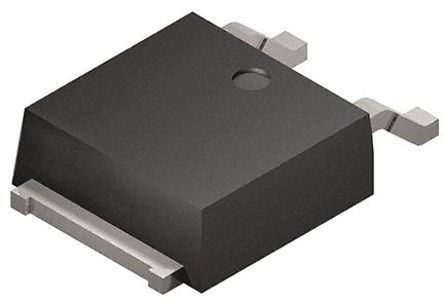

Image is for your reference only,please check specifications for details
- BTS3046SDR - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC140683009
-
Category:Power Management IC
-
Package:TO-252-3
-
Datasheet:Datasheet 3D Model
-
Description:Infineon BTS3046SDR Intelligent Power Switch, Low Side, 3.6A, 60V, 3Pin, TO-252
-
Stock Locations:
-
Availability:1,892 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.77
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Short circuit and over load protection
- Thermal shutdown with latch behavior
- ESD protection
- Over voltage protection
- Logic level input suitable for 5V and 3.3V
- Analog driving possible
- 12V and 24V usability
- Green Product (RoHS compliant)
- AEC Qualified
BTS3046SDR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Number of Outputs | 1 Output |
| Output Current | 3.6 A |
| Supply Current | 0.01 mA |
| Output Current (Min) | 3.6 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 10 V |
| Supply Voltage (Min) | 2 V |
| Input Voltage | 2V ~ 10V |
| Show | |
| Size-Length | 6.5 mm |
| Size-Width | 6.22 mm |
| Size-Height | 2.3 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
