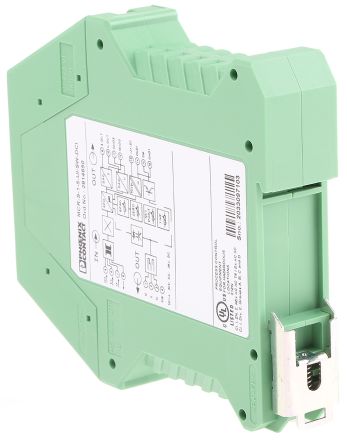

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The new MCR-S-...-DCI current transducers provide the user with the opportunity of ordering a pre-configured device, configuring the device himself with the DIP switches, or programming it with configuration software.
- MCR-S-1/5-UI-DCI, the smallest module, provides not only the standard 1 A and 5 A input signals, but also the opportunity of setting current ranges of 0...0.5 to 0...10 A progressively.
- **Features:**
- * Progressive Adjustment of Measuring Range
- * Electrical 3-Way Isolation in Accordance with EN 61010
- * True RMS Value Measurement
- * With Optical Relay and Transistor Output
- * 22.5 mm ME Housing
2814731 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 16 Pin |
| Number of Channels | 1 Channel |
| Number of Positions | 1 Position |
| Input Current | 0A ~ 11A |
| Output Voltage (Max) | 10 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 20VDC ~ 30VDC |
| Show | |
| Size-Length | 4.5 in |
| Size-Width | 22.5 mm |
| Size-Height | 3.9 in |
| Color | Green |
| Operating Temperature | -20℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8543704000 |
| ECCN Code | EAR99 |
