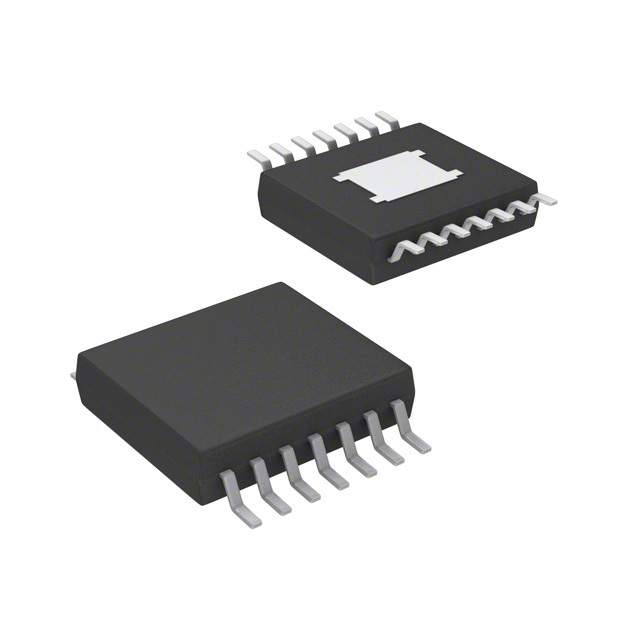

Image is for your reference only,please check specifications for details
- TPS55340PWPR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1454988
-
Category:DC to DC Converter
-
Package:HTSSOP-14
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.9V to 32V Step Up Single-Out 2.9V to 38V 5A 14Pin HTSSOP EP T/R
-
Stock Locations:
-
Availability:13,950 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.71
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Internal 5-A, 40-V Low-Side MOSFET Switch * 2.9-V to 32-V Input Voltage Range * ±0.7% Reference Voltage * 0.5-mA Operating Quiescent Current * 2.7-µA Shutdown Supply Current * Fixed Frequency Current Mode PWM Control * Frequency Adjustable From 100 kHz to 1.2 MHz * Synchronization Capability to External Clock * Adjustable Soft-Start Time * Pulse Skipping for Higher Efficiency at Light Loads * Cycle-by-Cycle Current Limit, Thermal Shutdown, and UVLO Protection * QFN-16 (3-mm × 3-mm) and HTSSOP-14 Packages With PowerPAD™ * Wide –40°C to 150°C Operating TJ Range
TPS55340PWPR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | HTSSOP-14 |
| Number of Outputs | 1 Output |
| Output Voltage | 2.9V ~ 38V |
| Output Current | 5 A |
| Number of Positions | 14 Position |
| Quiescent Current | 500 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 94kHz ~ 1.14MHz |
| Input Voltage (Max) | 32 V |
| Input Voltage (Min) | 2.9 V |
| Output Voltage (Max) | 38 V |
| Output Voltage (Min) | 2.9 V |
| Output Current (Max) | 5 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 2.9V ~ 32V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
