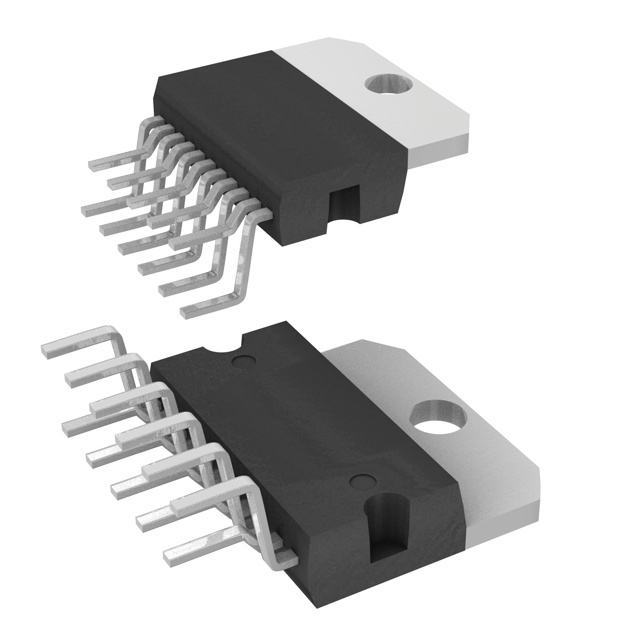

Image is for your reference only,please check specifications for details
- TDA7499 - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC150750400
-
Category:Audio Amplifier IC
-
Package:Multiwatt-11
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 2CH Stereo 10W Class-AB 11Pin(11+Tab) MULTIWATT V Tube
-
Stock Locations:
-
Availability:296 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 23/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Amplifier IC 2-Channel (Stereo) Class AB 11-Multiwatt
TDA7499 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 11 Pin |
| Case/Package | Multiwatt-11 |
| Supply Voltage (DC) | 20.0 V |
| Supply Current | 2.50 A |
| Power Dissipation | 23000 mW |
| Output Power | 23.0 W |
| Output Current (Max) | 2500 mA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Power Dissipation (Max) | 23000 mW |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
