TDA7496 ST Microelectronics - Audio Amplifier IC

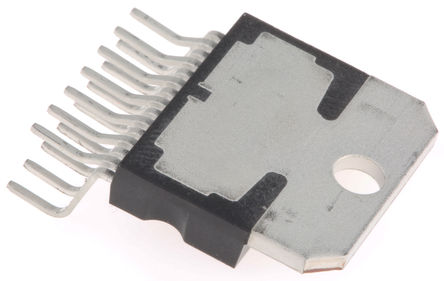

Image is for your reference only,please check specifications for details

TDA7496 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2059687
Category:
Audio Amplifier IC
Package:
Multiwatt-15
Datasheet:
Datasheet 3D Model
Description:
Аудиоусилитель мощности STMICROELECTRONICS TDA7496, класс AB, 2 канала, 5,5 Вт, 10 В до 32 В, корпус Multiwatt, 15 выводов
Stock Locations:
Availability:
280 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.84

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

TDA7496 — это стереофонический усилитель мощности класса AB мощностью 5 + 5 Вт, разработанный для высококачественного звука и телевизионных применений. Он включает линейный регулятор громкости, функции ожидания (stand-by) и отключения звука (mute). TDA7496 полностью совместим по расположению выводов с TDA7496S, TDA7496SA, TDA7495, TDA7495SA, TDA7494S и TDA7494SA.
Внутренне фиксированный коэффициент усиления
Защита от тепловой перегрузки
Переменный выход после схемы регулировки громкости
Мягкое ограничение сигнала
Низкий уровень щелчков при включении и выключении
Функции ожидания (standby) и отключения звука (mute)
Защита от короткого замыкания
Линейный регулятор громкости с непосредственной связью по постоянному току с мощным операционным усилителем

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	15 Pin
Case/Package	Multiwatt-15
Supply Voltage (DC)	32.0 V
Input Voltage (DC)	8.00 V
Output Current	1300 mA
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Positions	15 Position
Power Dissipation	15000 mW
Output Power	5.5 W
Gain	30 dB
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	15000 mW
Supply Voltage	10V ~ 32V
	Show
Size-Length	19.6 mm
Size-Width	5 mm
Size-Height	10.7 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
