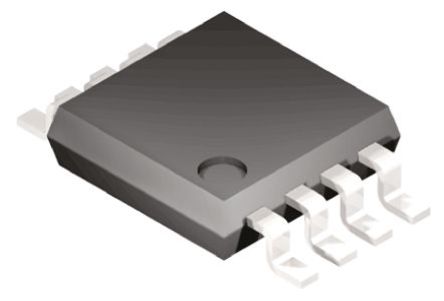

Image is for your reference only,please check specifications for details

AD8622ARMZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC575240
Category:
Operational Amplifier, OP Amp IC
Package:
MSOP-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD8622ARMZ Operational Amplifier, Dual, 2 Amplifier, 560kHz, 0.48V/µs, ± 2.5V to ± 15V, MSOP, 8Pins
Stock Locations:
Availability:
308 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD8622ARMZ is a low power precision dual Operational Amplifier with rail-to-rail output. It features low supply currents of only 350µA/amplifier, maximum over temperature and supply voltages. The AD8622 also has an input bias current cancellation circuitry that provides a very low input bias current over the full operating temperature. With a typical offset voltage of only 10µV, offset drift of 0.5µV/°C and noise of only 0.2µVp-p (0.1 to 10Hz), it is perfectly suited for applications where large error sources cannot be tolerated. Many systems can take advantage of the low noise, DC precision and rail-to-rail output swing provided by the AD8622 to maximize the signal-to-noise ratio and dynamic range for low power operation.
Unity gain stable
215µA/amplifier Typical supply current
200pA Maximum input bias current
1.2 µV/°C Maximum low input offset voltage drift
11nV/√Hz Very low voltage noise

Show

AD8622ARMZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	MSOP-8
Supply Current	215 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	135 dB
Input Capacitance	3.00 pF
Bandwidth	560 kHz
Slew Rate	480 mV/μs
Gain Bandwidth Product	0.56 MHz
Input Impedance	1.00 TΩ
Input Offset Voltage	10 µV
Input Bias Current	45 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	560 kHz
Gain Bandwidth	0.56 MHz
Minimum CMRR Range	125 dB
Supply Voltage (Max)	15 V
Supply Voltage (Min)	2.5 V
	Show
Size-Length	3.2 mm
Size-Width	3.2 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
