Description

Product Details

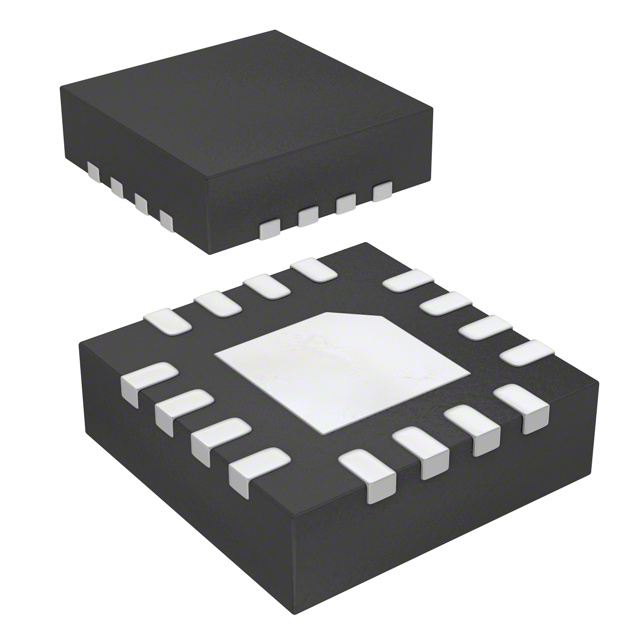

The HMC540SLP3E is a broadband 4-bit Silicon IC digital attenuator in a low cost leadless surface mount package. This single positive control line per bit digital attenuator utilizes off chip AC ground capacitors for near DC operation, making it suitable for a wide variety of RF and IF applications. Covering 0.1 to 8 GHz, the insertion loss is less than 1 dB typical. The attenuator bit values are 1 (LSB), 2, 4 and 8 dB for a total attenuation of 15 dB. Attenuation accuracy is excellent at ± 0.2 dB typical step error. The attenuator also features a IIP3 of +56dBm. Four TTL/CMOS control inputs are used to select each attenuation state. It can operate with a single Vdd ranging from +3.3V to 5V.
Applications
Cellular Infrastructure
ISM, MMDS, WLAN, WiMAX, WiBro
Microwave Radio & VSAT
Test Equipment and Sensors
### Features and Benefits
1 dB LSB Steps to 15 dB
±0.2 dB Typical Step Error
Low Insertion Loss: 1 dB
High IP3: +50 dBm
Single Control Line Per Bit
TTL/CMOS Compatible Control
Single +5V Supply
3x3 mm SMT Package

Show

HMC540SLP3E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	16 Pin
Case/Package	SMD-16
Supply Voltage (DC)	5.00V (max)
Supply Current	0.17 mA
Number of Channels	4 Channel
Number of Positions	16 Position
Number of Bits	4 Bit
Input Voltage (Max)	5.4 V
Input Voltage (Min)	3 V
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	5 V
Supply Voltage (Min)	3.3 V
Input Voltage	5 V
	Show
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
