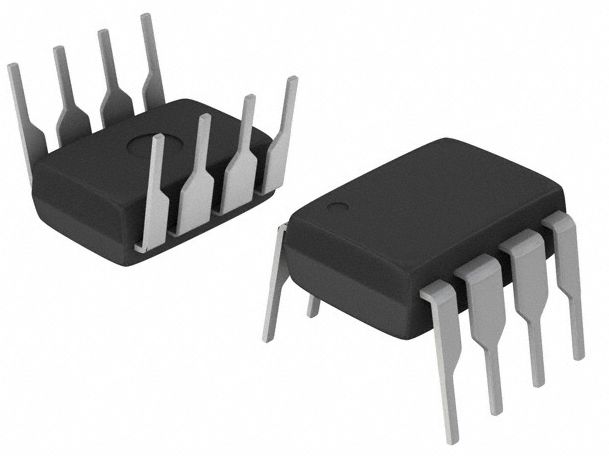

PCF8583P - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC151384637
Category:
Real Time Clock IC
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
IC 0 TIMER(S), REAL TIME CLOCK, PDIP8, 0.3INCH, PLASTIC, MO-001, SOT97-1, SC504-8, DIP-8, Timer or RTC
Stock Locations:
Availability:
1,100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCF8583P is a Clock and Calendar Chip, based on a 2048 bit static CMOS RAM organized as 256 words by 8 bits. Addresses and data are transferred serially via the two-line bidirectional I²C-bus. The built-in word address register is incremented automatically after each written or read data byte. Address pin A0 is used for programming the hardware address, allowing the connection of two devices to the bus without additional hardware. The built-in 32.768kHz oscillator circuit and the first 8bytes of the RAM are used for the clock, calendar and counter functions. The next 8bytes can be programmed as alarm registers or used as free RAM space. The remaining 240bytes are free RAM locations.
50µA Maximum Operating current (at fSCL = 0Hz)
Clock function with four year calendar
Universal timer with alarm and overflow indication
24- or 12-hour format
32.768kHz or 50Hz time base
Serial input and output bus (I²C-bus)
Automatic word address incrementing
