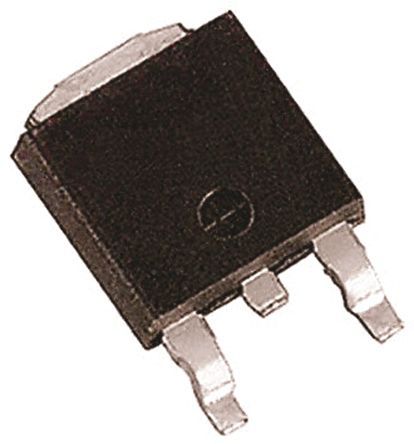

Image is for your reference only,please check specifications for details
- NCV8664DT50RKG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC47228007
-
Category:Voltage Regulator
-
Package:TO-252-3
-
Datasheet:Datasheet 3D Model
-
Description:NCV8664DT50RKG, LDO Voltage Regulator, 150mA, 5V +/-2%, 4.5to45Vin, 3Pin DPAK
-
Stock Locations:
-
Availability:271 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.2
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This LDO NCV8664DT50RKG linear regulator from ON Semiconductor acts like a variable resistor to maintain a steady voltage level. Its typical dropout voltage at current is 0.265@100mA|0.315@150mA V. It has an overall accuracy of ±2 %. This voltage regulation device"s single output can produce a current up to 0.15 A. Using the part will provide the power your application needs by requiring a voltage only of 4.5 V and not exceeding a voltage of 45 V. With a fixed output that has a voltage of 5 V, this is power management at its best. A load regulation of 35mV and line regulation of 25mV is necessary for providing a constant voltage level at your output. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has an operating temperature range of -40 °C to 150 °C. Its polarity is positive. The maximum dropout voltage is 0.5@100mA|0.6@100mA V.
NCV8664DT50RKG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-252-3 |
| Number of Outputs | 1 Output |
| Output Voltage | 5 V |
| Output Current | 150 mA |
| Supply Current | 29µA ~ 30µA |
| Number of Positions | 4 Position |
| Quiescent Current | 29 µA |
| voltage rating | 0.315V @150mA |
| Input Voltage (Max) | 45 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Min) | 5 V |
| Output Current (Max) | 150 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±2 % |
| Input Voltage | ≤45 V |
| Show | |
| Size-Length | 6.73 mm |
| Size-Width | 6.22 mm |
| Size-Height | 2.38 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
