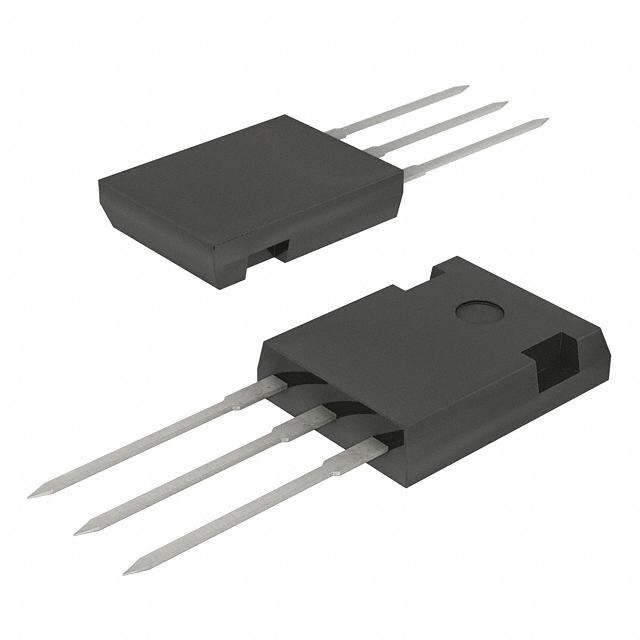

Image is for your reference only,please check specifications for details

IXTH30N60L2 - IXYS Semiconductor
Manufacturer:
IXYS Semiconductor
ManyChip's Part#:
MC47541388
Category:
MOSFET, MOSFET Transistor
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
IXYS SEMICONDUCTOR IXTH30N60L2 Power MOSFET, LINEAR L2™, N Channel, 30A, 600V, 240mohm, 10V, 2.5V
Stock Locations:
Availability:
258 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.96

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXTH30N60L2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	240 mΩ
Polarity	N-Channel
Power Dissipation	540 W
Threshold Voltage	2.5 V
Drain to Source Voltage (Vds)	600 V
Rise Time	65 ns
Input Capacitance (Ciss)	10700pF @25V(Vds)
Fall Time	43 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	540W (Tc)
	Show
Size-Width	5.3 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
