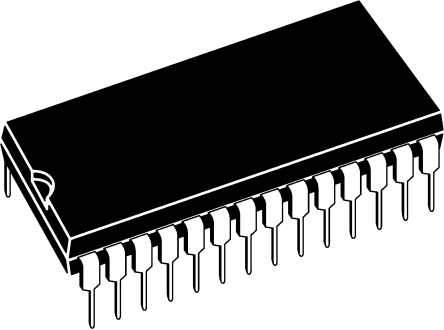

Image is for your reference only,please check specifications for details

AD976ANZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC37163668
Category:
Analog to Digital, ADC IC
Package:
DIP-28
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD976ANZ Analogue to Digital Converter, 16Bit, 100KSPS, Single, 4.75V, 5.25V, DIP
Stock Locations:
Availability:
1,983 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 37.96

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD976ANZ is a 16-bit BiCMOS high speed low power Analog-to-digital Converter (ADC) that operates from a single 5V supply. The part contains a successive approximation, switched capacitor ADC, an internal 2.5V reference and a high speed parallel interface. The ADC is factory calibrated to minimize all linearity errors. The analog full-scale input is the standard industrial range of ±10V. It is comprehensively tested for AC parameters such as SNR and THD as well as the more traditional parameters of offset, gain and linearity. It is fabricated on Analog Devices proprietary BiCMOS process which has high performance bipolar devices along with CMOS transistors.
Single 5V supply operation
100mW Maximum power dissipation
High speed parallel interface
On-chip clock
Complete A/D solution

Show

AD976ANZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	DIP-28
Digital Logic Level	SAR
Supply Voltage (DC)	4.75V (min)
Supply Current	11 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	28 Position
Number of Bits	16 Bit
Power Dissipation	100 W
Sample Rate	100 ksps
Resolution (Bits)	16.0 Bit
Input Capacitance	22.0 pF
Input Impedance	13.0 kΩ
Number of ADCs	1 ADC
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	1 Channel
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	39.75 mm
Size-Width	14.73 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	End of Life
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2014/06/16
